White Box Testing vs. Black Box Testing: Understanding the Differences



White Box Testing vs. Black Box Testing: Understanding the Differences

Testing is a crucial part of the software development lifecycle, ensuring that applications function as expected and meet user requirements. Two primary testing methodologies are White Box Testing and Black Box Testing. Each has its unique approach, benefits, and applications.

What is White Box Testing?

White Box Testing, also known as Clear Box, Glass Box, or Structural Testing, involves testing the internal structures or workings of an application. This method requires knowledge of the internal code, architecture, and logic.

Key Aspects of White Box Testing

• Knowledge of the Code: Testers need access to the source code and must understand how the application is implemented.
• Focus on Internal Workings: Tests are designed based on the internal logic, flow of data, and coding structures.
• Types of Testing:
  • Unit Testing: Verifying individual components or functions.
  • Integration Testing: Testing the interfaces between integrated units.
  • Code Coverage Testing: Ensuring all code paths are tested.

Example of White Box Testing

Imagine you’re testing a function that calculates the total price of items in a shopping cart, including taxes and discounts. The white box approach involves:

• Reviewing the code to understand how the function calculates the total.
• Writing test cases that cover various scenarios such as no items, items with discounts, and items with different tax rates.
• Ensuring that all conditional branches and loops in the code are tested.

White Box Testing Techniques:

Statement Coverage: This technique ensures that each statement in the code is executed at least once during testing. Test cases are designed to cover every line of code.

Example: Suppose there's a function in the code:



• Test case to achieve statement coverage:

• Input: a = 3, b = 5
• Expected output: 8

Branch Coverage: Ensures that every branch (decision point) in the code is tested at least once. It aims to cover all possible branches such as if-else conditions, loops, etc.

Example: Consider a method with an if-else statement:

Test cases for branch coverage:

Test case 1: Input marks = 95 (covers if branch)
    Test case 2: Input marks = 85 (covers else branch)

Path Coverage: Tests all possible paths through a segment of code, ensuring that every possible route from start to end is executed at least once.

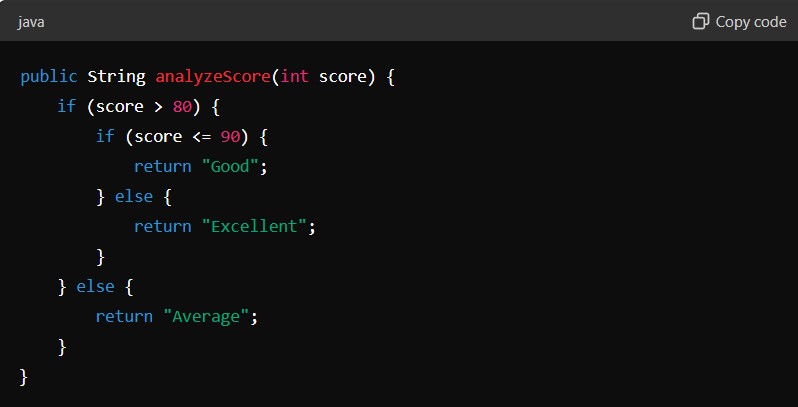

Example: For a method with nested conditions:

                              Test cases for path coverage:

• Test case 1: Input score = 85 (covers path: score > 80 and score <= 90)
• Test case 2: Input score = 95 (covers path: score > 80 and score > 90)

Condition Coverage: Focuses on testing Boolean expressions within the code, ensuring that all possible outcomes (true and false) of each condition are tested.

Example: Involving conditions within a loop

                                        Test cases for condition coverage:

• Test case 1: Input number = 7 (covers condition number % i == 0)
• Test case 2: Input number = 1 (covers condition number <= 1)

What is Black Box Testing?

Black Box Testing is also known as Behavioral Testing or Opaque Testing. This method focuses on testing the functionality of an application without knowing its internal workings.

Key Aspects of Black Box Testing

• No Knowledge of the Code: Testers do not need to know the internal implementation details.
• Focus on Inputs and Outputs: Tests are designed based on requirements and specifications.
• Types of Testing:
  • Functional Testing: Ensuring the application meets functional requirements.
  • System Testing: Testing the entire system’s behavior.
  • Acceptance Testing: Validating the application against user requirements.

Example of Black Box Testing

 If we take a shopping cart , black box testing involves:

• Providing various inputs (different items, tax rates, and discounts) to the developed function.
• Checking whether the output matches the expected results.

• Black Box Testing Techniques

  1. Equivalence Partitioning:

     • Example: Testing a login function where usernames are validated:
       • Partition username into valid (length > 5 characters) and invalid (length <= 5 characters).
       • Test cases:
         • Valid username: "john_doe"
         • Invalid username: "jdoe"

  2. Boundary Value Analysis:

     • Example: Testing a function that calculates discounts based on age:
       • Consider age boundaries (0, 17, 18, 65, and 66+).
       • Test cases:
         • Age = 17 (boundary)
         • Age = 18 (boundary)
         • Age = 65 (boundary)
         • Age = 66 (boundary)

  3. Decision Table Testing:




      Example: Testing a system that calculates shipping costs based on weight and destination.                            Test cases based on combinations from the decision table.

  4. State Transition Testing:

     • Example: Testing an ATM withdrawal process that has states like idle, processing, and complete:
       • Define transitions between states (idle to processing, processing to complete, etc.).
       • Test cases cover each state and transition.

  These examples illustrate how each technique is applied to test different aspects of software functionality and logic, ensuring thorough coverage and validation of the software under test.

  When to Use Each Approach

  • White Box Testing is ideal for lower-level testing where deep understanding of code is essential, such as unit testing and integration testing. It helps identify hidden errors in the code and ensures that all paths and branches are covered.
  • Black Box Testing is more suited for higher-level testing, such as system and acceptance testing, where the focus is on verifying that the application meets the user's requirements and functions correctly in various scenarios.

  Conclusion

  Both white box and black box testing play vital roles in ensuring software quality. While white box testing provides a thorough examination of the internal workings, black box testing validates the application's functionality from the user’s perspective. By leveraging both methodologies, you can achieve a comprehensive testing strategy that ensures robust and reliable software.

  Understanding when and how to apply each method will help you create more effective test cases and improve the overall quality of your software products.
